Private container registries with Harbor on 3Engines Cloud Kubernetesđź”—¶
A fundamental component of the container-based ecosystem are container registries, used for storing and distributing container images. There are a few popular public container registries, which serve this purpose in a software-as-a-service model and the most popular is DockerHub.
In this article, we are using Harbor, which is a popular open-source option for running private registries. It is compliant with OCI (Open Container Initiative), which makes it suitable to work with standard container images. It ships with multiple enterprise-ready features out of the box.
Benefits of using your own private container registryđź”—¶
When you deploy your own private container registry, the benefits would be, amongst others:
- full control of the storage of your images and the way of accessing them
- privacy for proprietary and private images
- customized configuration for logging, authentication etc.
You can also use Role-based access control on Harbor project level to specify and enforce which users have permission to publish updated images, to consume the available ones and so on.
What We Are Going To Coverđź”—¶
- Deploy Harbor private registry with Bitnami-Harbor Helm chart
- Access Harbor from browser
- Associate the A record of your domain to Harbor’s IP address
- Create a project in Harbor
- Create a Dockerfile for our custom image
- Ensure trust from our local Docker instance
- Build our image locally
- Upload a Docker image to your Harbor instance
- Download a Docker image from your Harbor instance
Prerequisitesđź”—¶
No. 1 Hosting
You need a 3Engines Cloud hosting account with Horizon interface https://3engine.rootxwire.com/.
No. 2 A cluster on 3Engines-Cloud cloud
A Kubernetes cluster on 3Engines Cloud cloud. Follow guidelines in this article How to Create a Kubernetes Cluster Using 3Engines Cloud 3Engines Magnum.
No. 3 kubectl operational
kubectl CLI tool installed and pointing to your cluster via KUBECONFIG environment variable. Article How To Access Kubernetes Cluster Post Deployment Using Kubectl On 3Engines Cloud 3Engines Magnum provides further guidance.
No. 4 Familiarity with deploying Helm charts
See this article:
Deploying Helm Charts on Magnum Kubernetes Clusters on 3Engines Cloud Cloud
No. 5 Domain purchased from a registrar
You should own a domain, purchased from any registrar (domain reseller). Obtaining a domain from registrars is not covered in this article.
No. 6 Use DNS service in Horizon to link Harbor service to the domain name
This is optional. Here is the article with detailed information:
DNS as a Service on 3Engines Cloud Hosting
No. 7 Docker installed on your machine
See How to install and use Docker on Ubuntu 24.04.
Deploy Harbor private registry with Bitnami-Harbor Helm chartđź”—¶
The first step to deploy Harbor private registry is to create a dedicated namespace to host Harbor artifacts:
Then we add Bitnami repository to Helm:
We will then prepare a configuration file, which we can use to control various parameters of our deployment. If you want to have a view of all possible configuration parameters, you can download the default configuration values.yaml:
You can then see the configuration parameters with
Otherwise to proceed with the article, use nano editor to create new file harbor-values.yaml
and paste the following contents:
externalURL: mysampledomain.info
nginx:
tls:
commonName: mysampledomain.info
adminPassword: Harbor12345
These settings deploy Harbor portal as a service of LoadBalancer type, and the SSL termination is delegated to NGINX that gets deployed along as a Kubernetes pod.
Warning
We use mysampledomain.info for demonstration purposes only. Please replace this with a real domain you own while running the code in this article.
For demonstration we also use a simple password, which can be replaced after the initial login.
Now install the chart with the following command:
The output should be similar to the following:
NAME: harbor
LAST DEPLOYED: Tue Aug 1 15:48:44 2023
NAMESPACE: harbor-bitnami
STATUS: deployed
REVISION: 1
TEST SUITE: None
NOTES:
CHART NAME: harbor
CHART VERSION: 16.6.5
APP VERSION: 2.8.1
** Please be patient while the chart is being deployed **
1. Get the Harbor URL:
NOTE: It may take a few minutes for the LoadBalancer IP to be available.
Watch the status with: 'kubectl get svc --namespace harbor-bitnami -w harbor'
export SERVICE_IP=$(kubectl get svc --namespace harbor-bitnami harbor --template "{{ range (index .status.loadBalancer.ingress 0) }}{{ . }}{{ end }}")
echo "Harbor URL: http://$SERVICE_IP/"
2. Login with the following credentials to see your Harbor application
echo Username: "admin"
echo Password: $(kubectl get secret --namespace harbor-bitnami harbor-core-envvars -o jsonpath="{.data.HARBOR_ADMIN_PASSWORD}" | base64 -d)
Access Harbor from browserđź”—¶
With the previous steps followed, you should be able to access the Harbor portal. The following command will display all of the services deployed:
Here they are:
$ kubectl get services -n harbor-bitnami
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
harbor LoadBalancer 10.254.208.73 64.225.133.148 80:32417/TCP,443:31448/TCP,4443:31407/TCP 4h2m
harbor-chartmuseum ClusterIP 10.254.11.204 <none> 80/TCP 4h2m
harbor-core ClusterIP 10.254.209.231 <none> 80/TCP 4h2m
harbor-jobservice ClusterIP 10.254.228.203 <none> 80/TCP 4h2m
harbor-notary-server ClusterIP 10.254.189.61 <none> 4443/TCP 4h2m
harbor-notary-signer ClusterIP 10.254.81.205 <none> 7899/TCP 4h2m
harbor-portal ClusterIP 10.254.217.77 <none> 80/TCP 4h2m
harbor-postgresql ClusterIP 10.254.254.0 <none> 5432/TCP 4h2m
harbor-postgresql-hl ClusterIP None <none> 5432/TCP 4h2m
harbor-redis-headless ClusterIP None <none> 6379/TCP 4h2m
harbor-redis-master ClusterIP 10.254.137.87 <none> 6379/TCP 4h2m
harbor-registry ClusterIP 10.254.2.234 <none> 5000/TCP,8080/TCP 4h2m
harbor-trivy ClusterIP 10.254.249.99 <none> 8080/TCP 4h2m
Explaining the purpose of several artifacts is beyond the scope of this article. The key service that is interesting to us at this stage is harbor, which got deployed as LoadBalancer type with public IP 64.225.134.148.
Associate the A record of your domain to Harbor’s IP addressđź”—¶
The final step is to associate the A record of your domain to the Harbor’s IP address.
- Create or edit the A record through your domain registrar
- The exact steps will vary from one registrar to another so explaining them is out of scope of this article.
- Create or edit the A record through the DNS as a service available in your 3Engines Cloud account

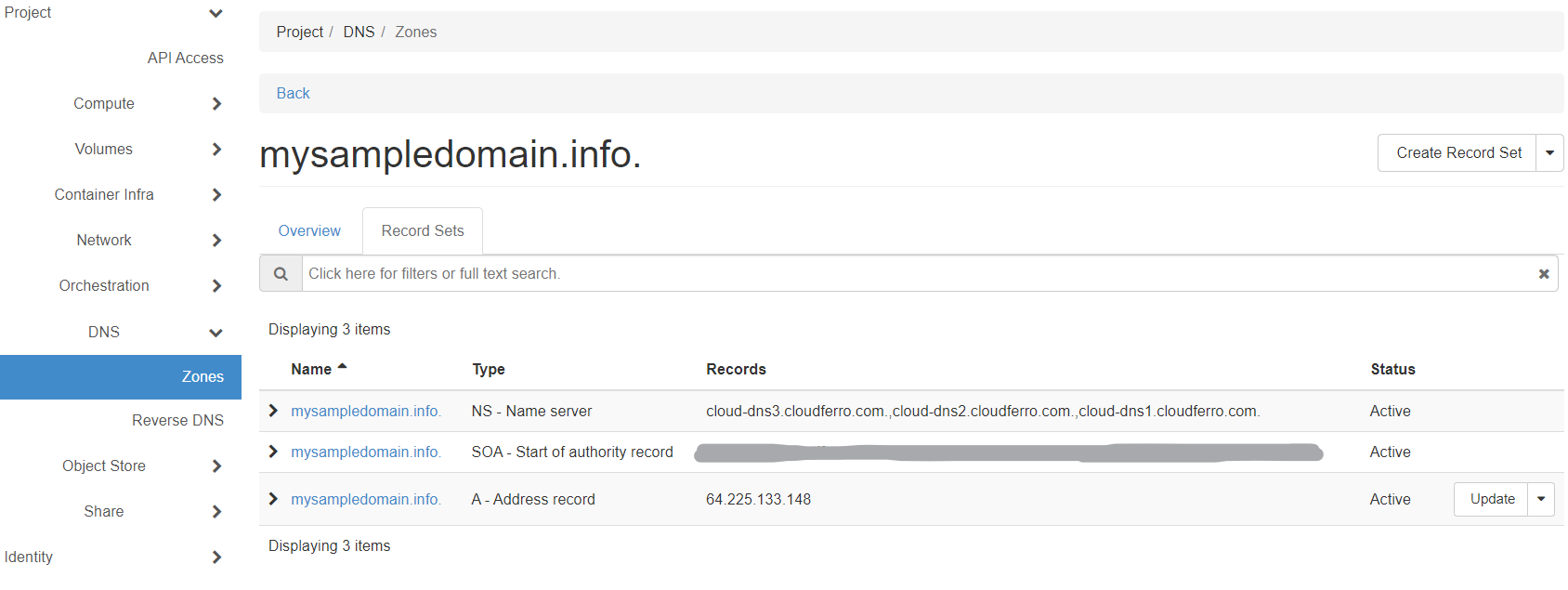

- This is explained in Prerequisite No. 6. Use commands DNS –> Zones and select the name of the site you are using instead of mysampledomain.info, then click on Record Sets. In column Type, there will be type A - Address record and click on Update field on the right side to enter or change the value in that row:
In this screenshot, the value 64.225.134.148 is already entered into that Update field – you will, of course, here supply your own IP value instead.

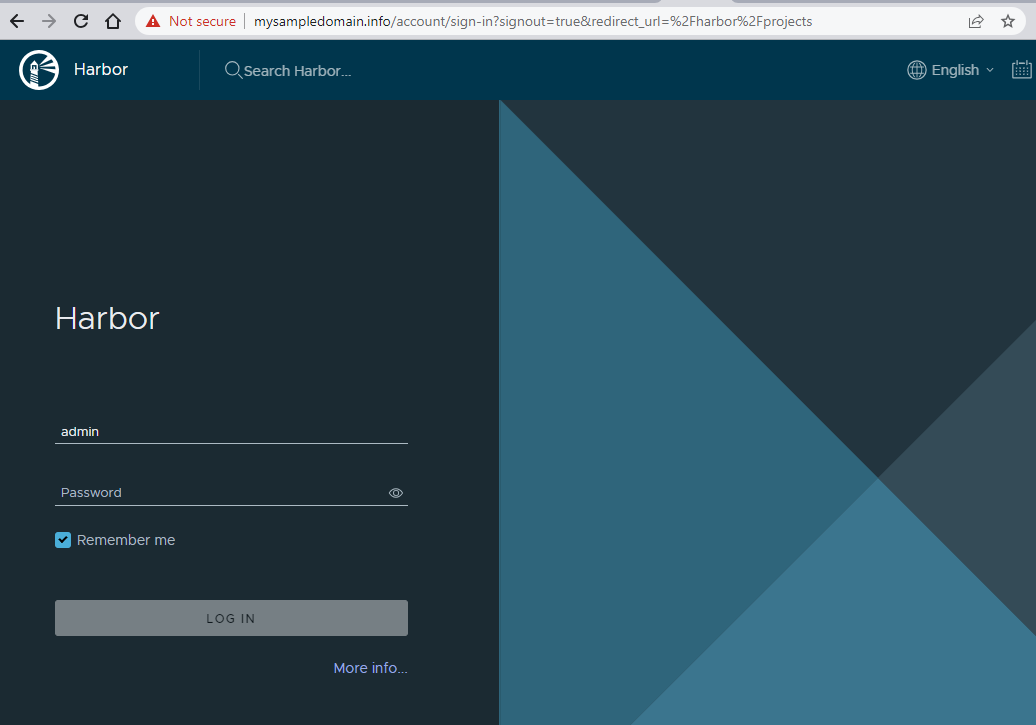

With the above steps completed, you can access harbor from the expected URL, in our case: https://mysampledomain.info. Since the chart generated self-signed certificates, you will first need to accept the “Not Secure” warning provided by the browser:
Note
This warning will vary from one browser to another.
To log in to your instance, use these as the login details
login admin password Harbor12345
Create a project in Harborđź”—¶

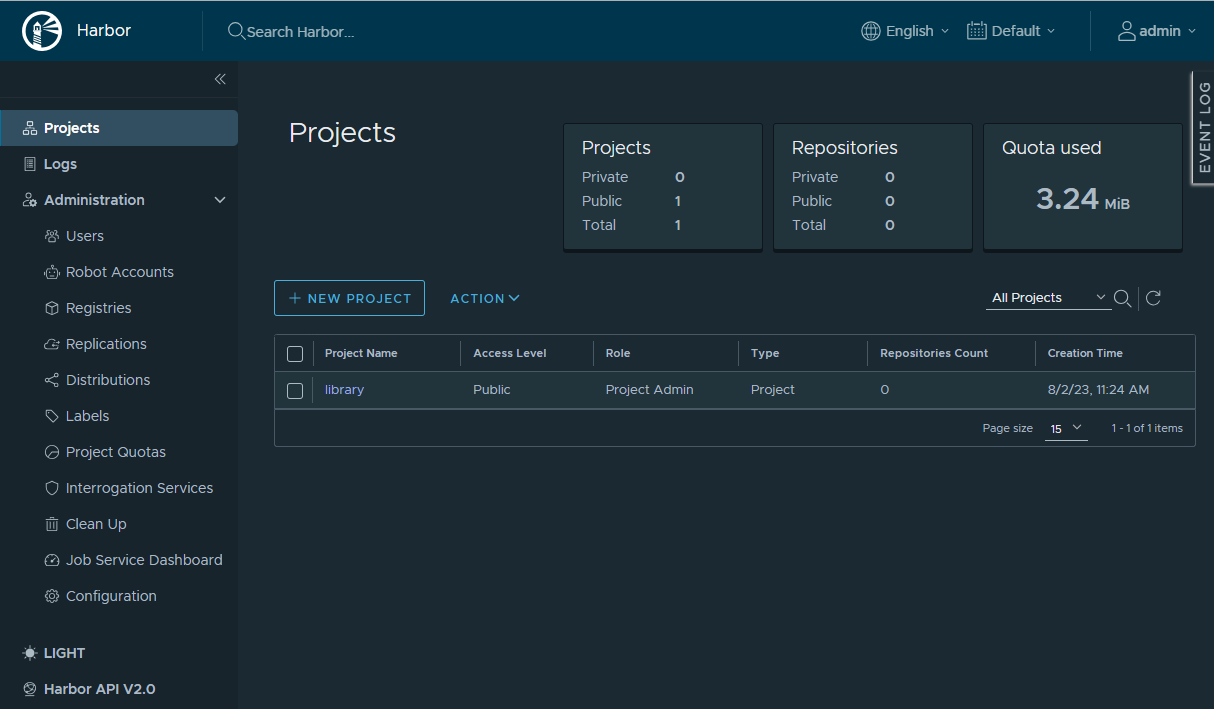

When you log in to Harbor, you enter the Projects section:
A project in Harbor is a separate space where containers can be placed. An image needs to be placed in a scope of a specific project. As a Harbor admin, you can also apply Role-Based Access Control on the Harbor project level, so that only specific users can access or perform certain operations within a scope of a given project.

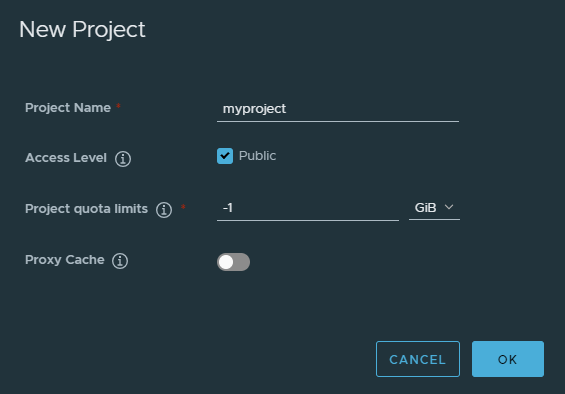

To create a new project, click on New Project button. In this article, we will upload a public image that can be accessed by anyone, and let it be called simply myproject:
Create a Dockerfile for our custom imageđź”—¶
The Harbor service is running and we can use it to upload our Docker images. We will generate a minimal image, so just create an empty folder, called helloharbor, with a single Docker file (called Dockerfile)
Dockerfile
and its contents be:
Ensure trust from our local Docker instanceđź”—¶
In order to build our Docker image in further steps and upload this image to Harbor, we need to ensure communication of our local Docker instance with Harbor. To fulfill this objective, proceed as follows:
Ensure Docker trust - Step 1. Bypass Docker validating the domain certificateđź”—¶
Bypass Docker validating the domain certificate pointing to the domain where Harbor is running. Docker would not trust this certificate, because it is self-signed. To bypass this validation, create a file called daemon.json in /etc/docker directory on your local machine:
You are using sudo so will be asked to supply the password. Now create the file:
and fill in with this content, then save with Ctrl-X, Y:
As always, replace mysampledomain.info with your own domain.
For production, you would rather set up proper HTTPS certificate for the domain.
Ensure Docker trust - Step 2. Ensure Docker trusts the Harbor’s Certificate Authorityđź”—¶

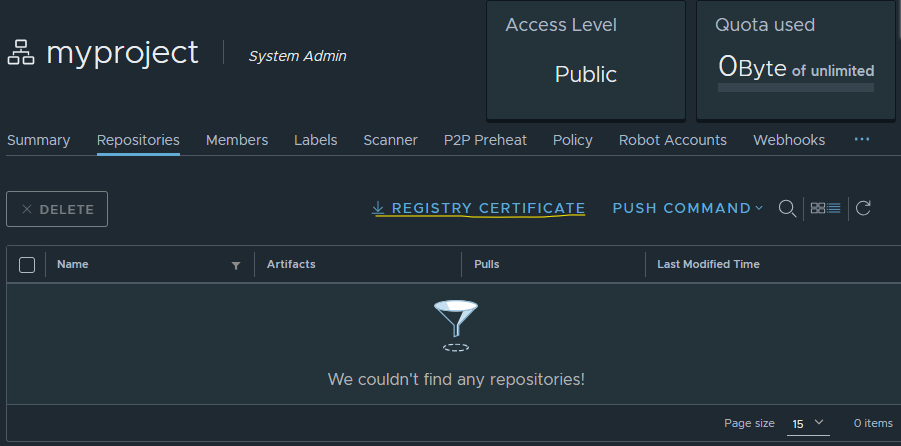

To do so, we download the ca.crt file from our Harbor portal instance from the myproject project view:
The exact way of installing the certificate will depend on the environment you are running Docker on:
- Install the certificate on Linux
-
Create a nested directory path /etc/docker/certs.d/mysampledomain.info and to this folder upload the ca.crt file:
- Install the certificate on WSL2 running on Windows 10 or 11
-
In WSL2, you would need to upload the certificate to Windows ROOT CA store with the following sequence:
- Click on Start and type Manage Computer Certificates
- Right-click on Trusted Root Certification Authorities then All tasks and Import
- Browse to the ca.crt file location and then keep pressing Next to complete the wizard
- Restart Docker from Docker Desktop menu
Ensure Docker trust - Step 3. Restart Dockerđź”—¶
Restart Docker with:
Build our image locallyđź”—¶
After these steps, we can tag our image and build it locally (from the location where Dockerfile is placed):
Next we can log in to the Harbor portal with our admin login and Harbor12345 password:
Upload a Docker image to your Harbor instanceđź”—¶
Lastly, push the image to the repo:

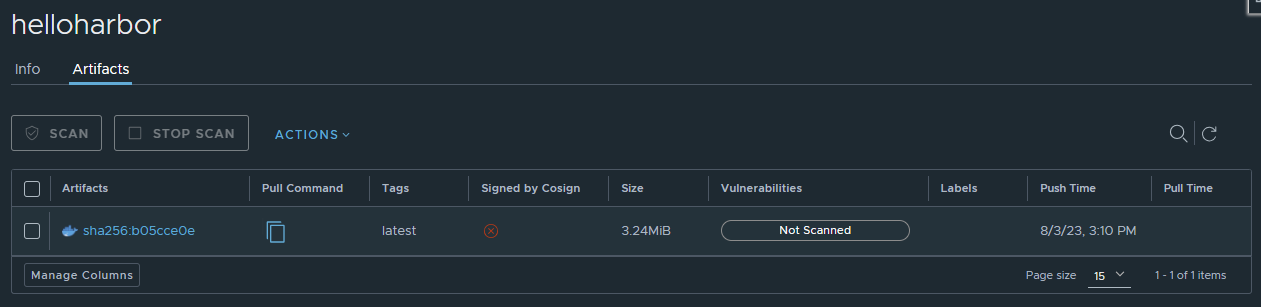

The result will be similar to the following:
Download a Docker image from your Harbor instanceđź”—¶
To demonstrate downloading images from our Harbor repository, we can first delete the local Docker image we created earlier.
To verify, view it is not on our local images list:
Then pull from Harbor remote:
